6T Storage Rack Roll Forming Machine 10m/min Hydraulic Press

Hydraulic Press Easy Install Storage Rack Roll Forming Machine

General description:

Hydraulic Press Easy Install Storage Rack Roll Forming Machine is a professional automatic

machine for making shelves pillar in various types for supermaket or warehouse using. It suits

for batch or mass producing supermake pillars. the machine can produce two or three or more

profiles with no change of rollers,it is easy to operate and high efficiency.

Machine technical parameters:

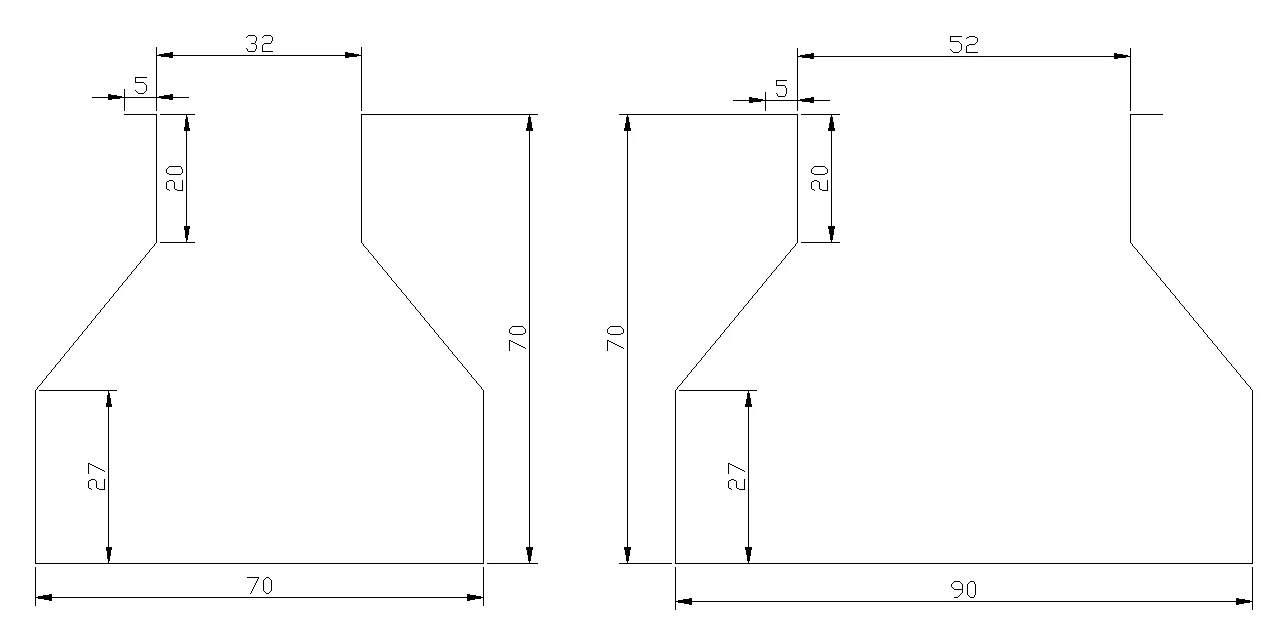

Suitable drawing:

material thickness 1.5-2.5mm

feeding width are 227 and 248mm

holes position at both bottom and vertical side.

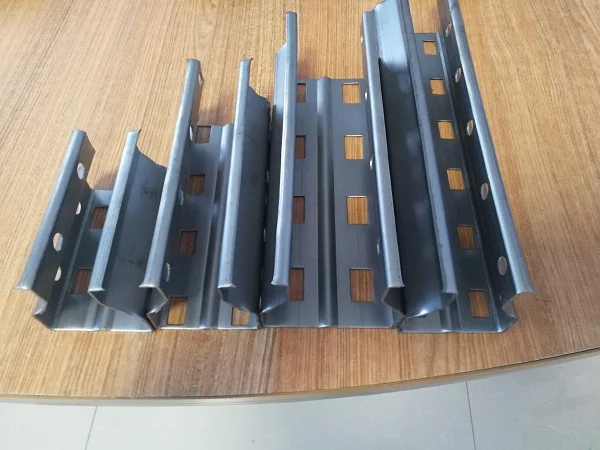

Finised product show:

Working flow chart:

Machine components:

a, 3t single head decoiler

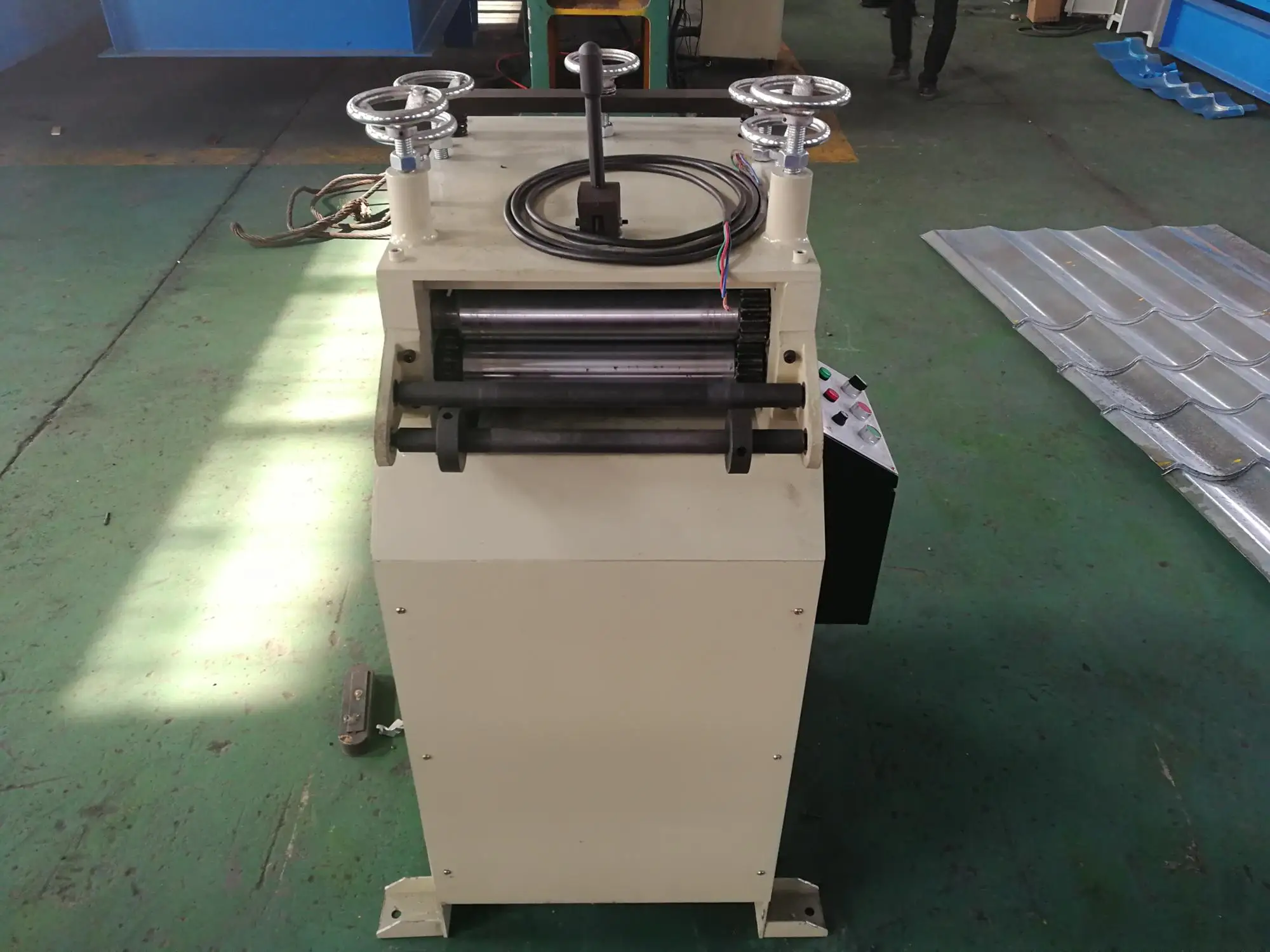

b, Electric motor drive leveling device

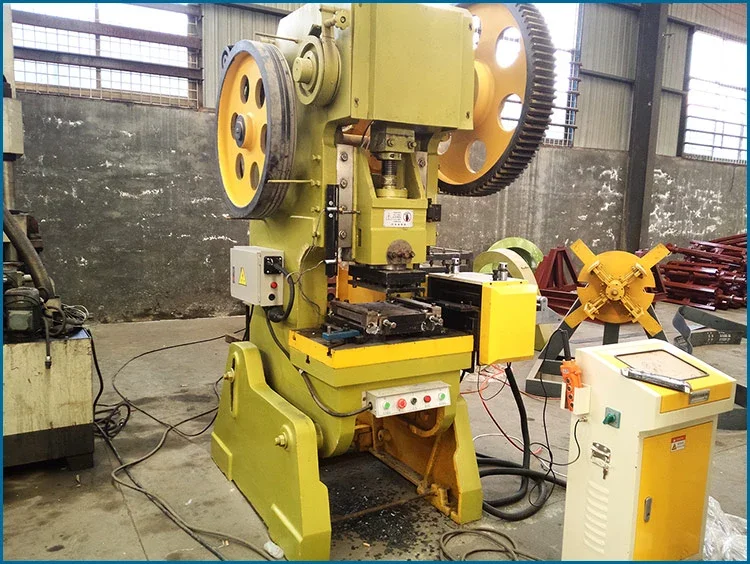

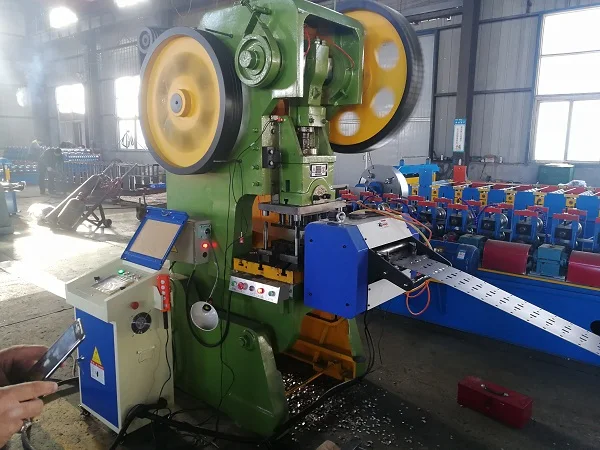

c, Press power 63T punching machine with servo motor

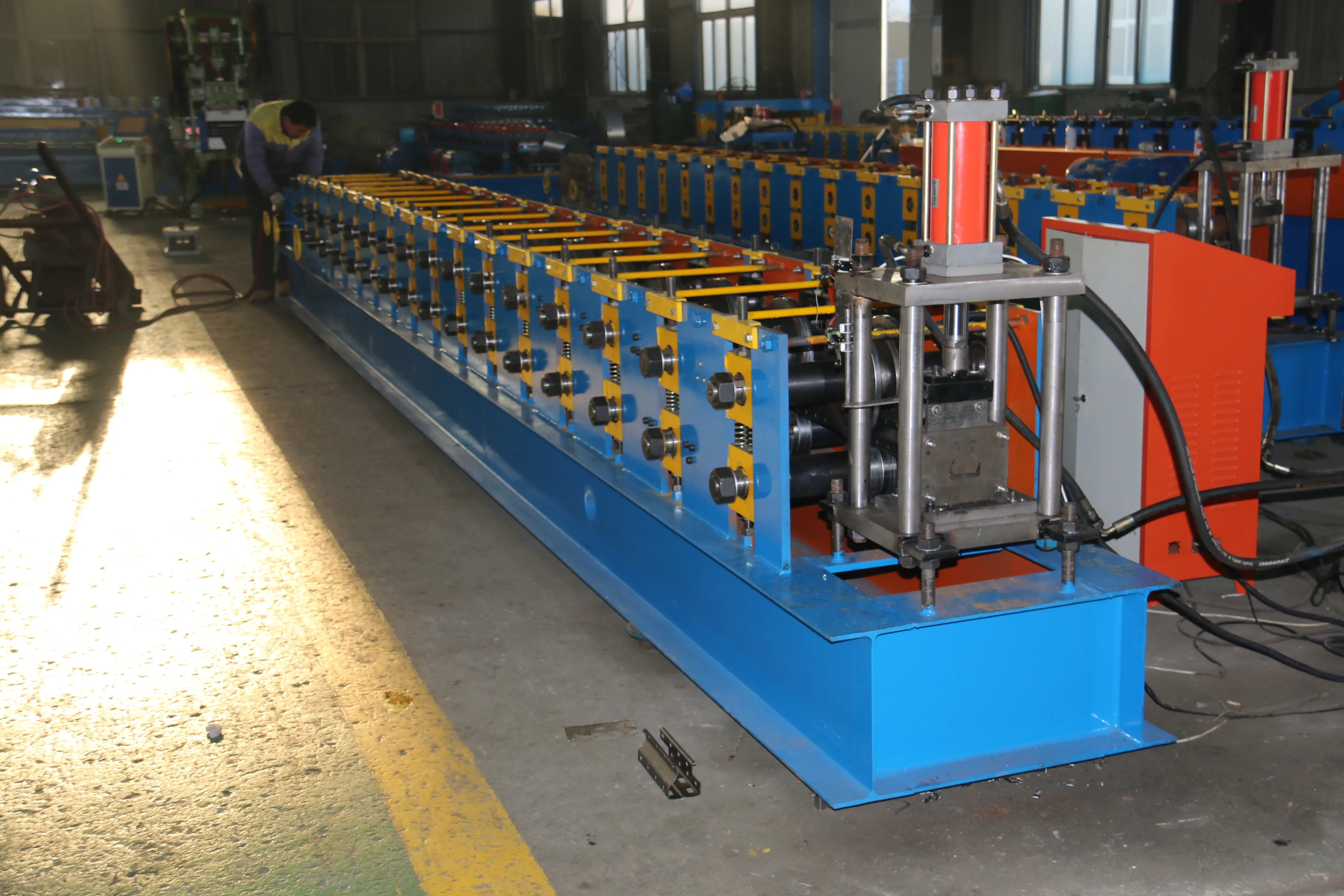

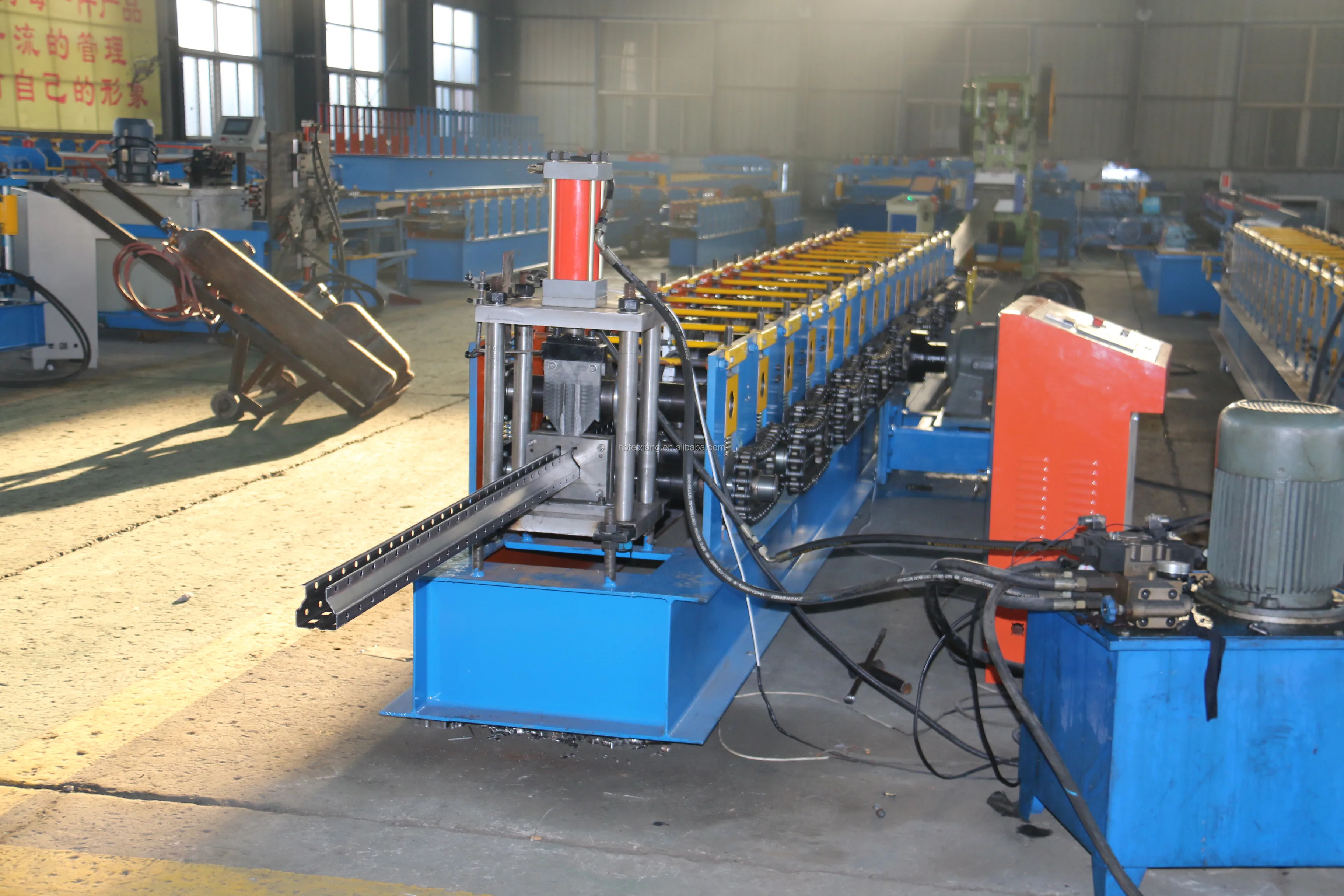

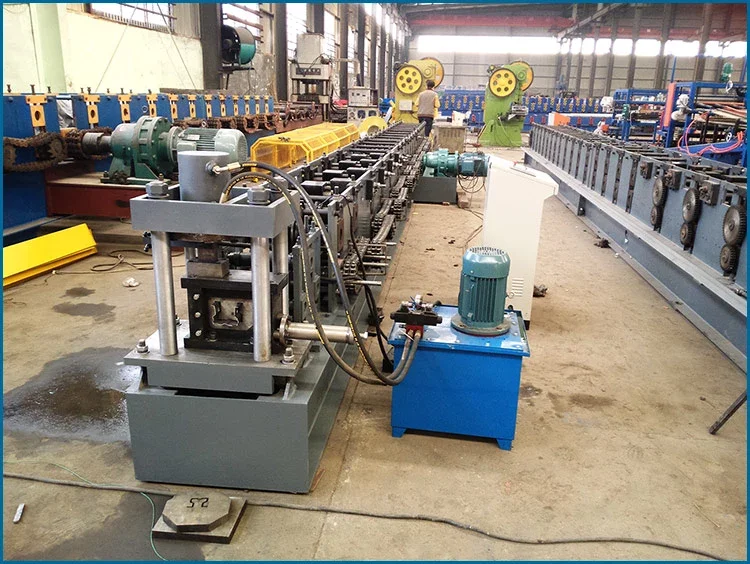

d, Main roll forming machine

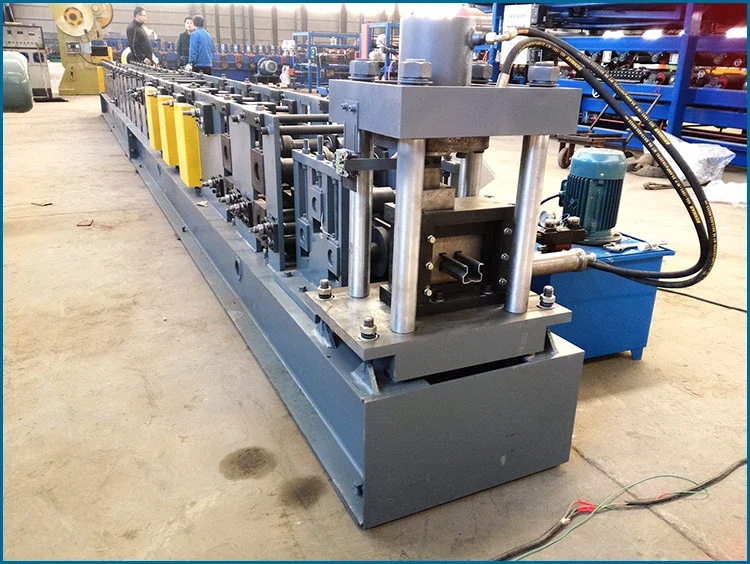

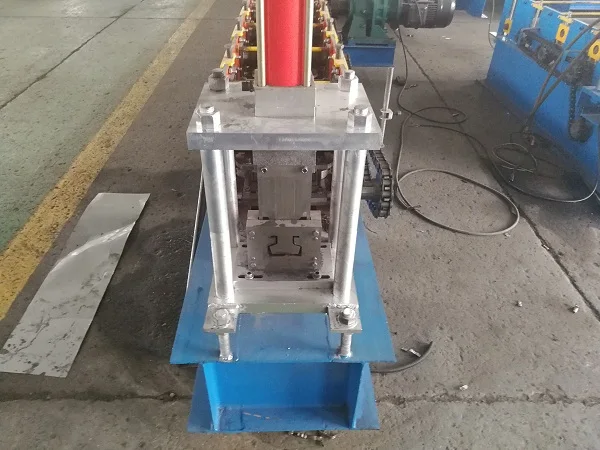

e, Three blade shearing part :

(1) Shearing type:It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

(2) Material:GCr12,Quenching Oil HRC58-62°C

(3) Length :automatically cut in specified length

(4) Advantages: no twist low noise,high accuracy.
